Products Introduction：

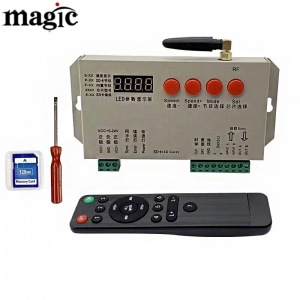

T-1000S LCD Display 2048 PIXEL RGB sync 2811 TTL DMX SPI programmable LEDEdit magic Digital Addressable SD Card LED controller

Products Features:

Name	T1000S Addressable LED controller
Support Sync between controllers	Sync
Working Voltage	DC5-24V
Power	2W
Ports Number	1 Port
Max Control Pixels	2048 Pixels, RGB
Working Temperature	-15℃~65℃
Product Size	1587925MM
Support SD Card	YES, 256MB SD Card
Support multiple synchronization	YES , RJ45 internet cable Sync
Support IC Types	TM-1803,1804,1809,1812，1829、1903、1904、1912 UCS-1903、1903B 、1909、2903,2909,2912,1912 WS-2811、2801、2803 2812,WS2815 SM-16711、16716、16726、 RGB/ RGBW SK6812、P9813、6803 ；DMX512

Specification of memory SD card
1 Type: SD card : 256 MB
3 Format: Support FAT and FAT32 4 Save Fat: *.led

Description of digital display
1 S-XX: speed

2 P-XX: program
3 XXXX: IC type

4 E-XX: Display SD card Error

Operation of button
SPEED+: Accelerate the playing speed, max speed is S-19
SPEED-: Slow down the playing speed, min speed is S-01
MODE: Switch to programs
SET: Set IC types, choose current IC type and wait it automatic save after 8 seconds. Then restart the power.

Note: Don’t power off after choosing IC type and program, until wait about 8 second, all the setting is saved automatically.

Feature and using of digital display
1. Range of speed: from S-01 to S-19, the more smaller of number, the more lower of speed; the more bigger of number, the more faster of speed. Many controller synchronize, max speed is S-16. After setting speed and wait about 8 seconds, it will be save automatically. Then restart the power.
2. Range of program: from P-01 to P-96. Max saving program number is 96 programs. Each press, will switch to another program.
3. A-01 automatic playing cyclically.
